Laser Micrometer

A laser micrometer is proudly introduced by Puretronics. Deivice enables the user to maintain and control the diameter of the product during the manufacturing process.

Best Supplier of Laser Diameter Gauge near me

Laser Diameter Gauge is proudly introduced by Puretronics with an European Company. This deivice enables the user to maintain and control the diameter of the product during the manufacuring process.

It reduces waste, manpower and saves material, at the same time it ensure consistent product output.

Its ease to operation, setup and integration with the system, makes it simplier for any operate the use the device efficiently and maintain it properly at the same time, thus increasing the life span of the device. The aluminium housing makes it durable and at the same time rugged for tough production enviormental conditions.

The accessories and multiple output along with the device helps the user to keep track of the production and ensures proper monitoring durign the process.

  • Features
  • Technical Specification
  • Accessory
  • Applications
  • High and Low Value, Out of Range Alarm
  • Alarm on-off Selection
  • Automatic Correction to Control the Diameter
  • Auto/Manual Mode Selection
  • Analog Ouput: 0-10V
  • Communication Port: RS485
  • Data Logger (Optional)
  • PC Based Software (Optional)
Technical Specification

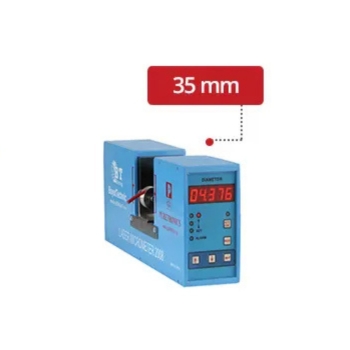

Model LAZER 2008 LAZER 2008 B
Measurement Range 0.8 - 35 mm 1.0 - 140 mm
Gate Size 50 mm 50 mm
Scan Velocity 156 m/s 156 m/s
Resolution 1 micron 1 micron
Repeatability * ± 1 micron ± 2 micron
Accuracy * ± 2 micron or ± %0.1 of reading value ± 5 micron or ± %0.1 of reading value
Scan Rate 416 scan/s 416 scan/s
Operating Temperature 0 -50° C 0 -50° C
Relative Humidity 0 - 95% non condensing 0 - 95% non condensing
Power Supply Between 85Vac to 285Vac Between 85Vac to 285Vac
Dimension (LxHxW) 384x150x82 mm 820x365x82 mm
Power Consumption Less than 10 Watt Less than 10 Watt
* Above values are for Averaging of 100 readings.
* Above values are for Averaging of 200 readings.
EXTRA-DISPLAY The extra display for the Laser Series enables the easy communication of the display value on the gauge for the user to monitor the production and take necessary control measure. The display continuously communciates with the Gauge to through RS485 communication. This helps the user to place the display at a convinent location for him to monitor. Buy Laser Diameter Gauge near me
AUTO-CORRECTION-POT The auto correction pot for the laser series enables troublefree closed loop control of the diameter with the system. The laser gauge senses the diameter and gives the output to the correction pot. The correction pot acts a feedback mechanism to control the diameter of the product. Best Supplier of Laser Diameter Gauge
STAND-LASER2008 The stand is used for LASER2008 to keep it steady during the production. The adjustable height of the stand makes it easier in case of interfacing it with different machine and different application. Best quality Laser Diameter Gauge

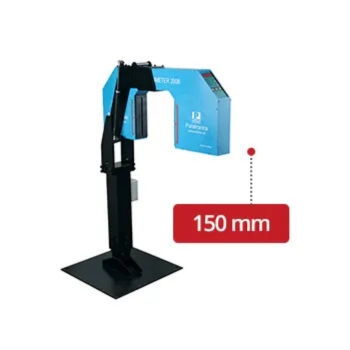

STAND-LASER2008B The stand is used for LASER2008B to keep it steady during the production. The adjustable height of the stand makes it easier in case of interfacing it with different machine and different application. Top Supplier of Laser Diameter Gauge
STAND-MOTORISED-LASER2008 The stand is used for LASER2008 for measuring the product by oscillating around the product during manufacturing. This helps the user to get the real average of the product and not only through fixed axis of measurements.

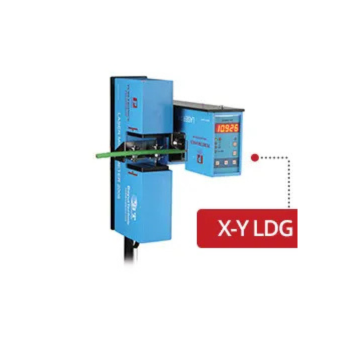

STAND-X&Y-LASER2008 The stand is used for X&Y-LASER2008 to keep it steady during the production. The adjustable height of the stand makes it easier in case of interfacing it with different machine and different application.
DATA-LOGGER-LASER The data logger enables the user to log the data in order for QC and maintainance purpose.
PC-BASED-SOFTWARE-LASER PC Based Software enables the user to view the data from a remote location in the cable. The communication with the PC happens through a serial interface with the gauge.
  • Wire Drawing
  • Fibre Optics
  • Telecom
  • Building Wire
  • Power Cable
  • Tube Extrusion
  • Rops
  • Tools
  • Threads
  • Tube Lights
  • Profiles
  • Glass Rods / Tubes
Frequently Asked Questions
In very simple terms this device is a non contact laser device where there is a gate of laser light, through which if the product passes it shall block the parallel gate light which in turn through signal processing we can measure the product.
Yes, the device is capable of measuring all opaque and transparent objects. (For transparent objects, you shall need to notify us at the time of ordering).
Yes, the device has multiple outputs which can be used to integrate with the main control system to control the diameter of the product. We also offer accessories to integrate with your main system; however, we need to check it first.
This device is used for two purposes:
  1. Monitoring - One can use the device to continuously monitor the product data and set up alarm outputs to receive audio-visual alerts for corrective action.
  2. Monitor and Control - One can use the device to continuously monitor and also use the relevant output or accessory to control the product by closed-loop integration with the main control system of your machine.
The product has communication outputs like RS485 & RS232, allowing connection over an IoT network. We also provide accessories such as data logging and PC-based software, enabling users to connect multiple devices and create graphs and logs for records and review purposes.
The device is useful for two reasons:
  1. The device enhances your product quality, reducing rejections and delivering quality products to customers.
  2. With the control feature, a person can maintain product dimensions, reduce material waste, and save both time and money.
One can always connect with our sales team for a payback analysis.
The device is complex in principle but very simple and user-friendly to operate. Only a few settings need to be changed when using it in control mode; otherwise, it is a plug-and-play device.
The device is easy to use, but some care points include:
  1. Provide a stable power supply with proper earthing as recommended in the manual for better product life.
  2. For preventive maintenance, clean the lens with a recommended cloth and cleaning fluid.
  3. Avoid exposing the device to heavy physical impact.
  4. Protect the device from external impurities like water, which may damage the internal electronics.

Note: We have taken care to counter the above points however if the care is taken by the user gives a longer longitivity to the product.
