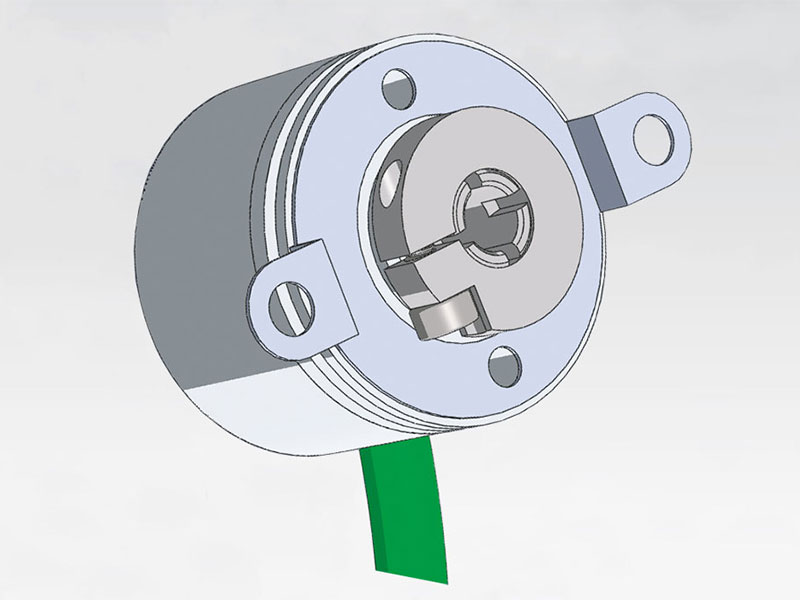

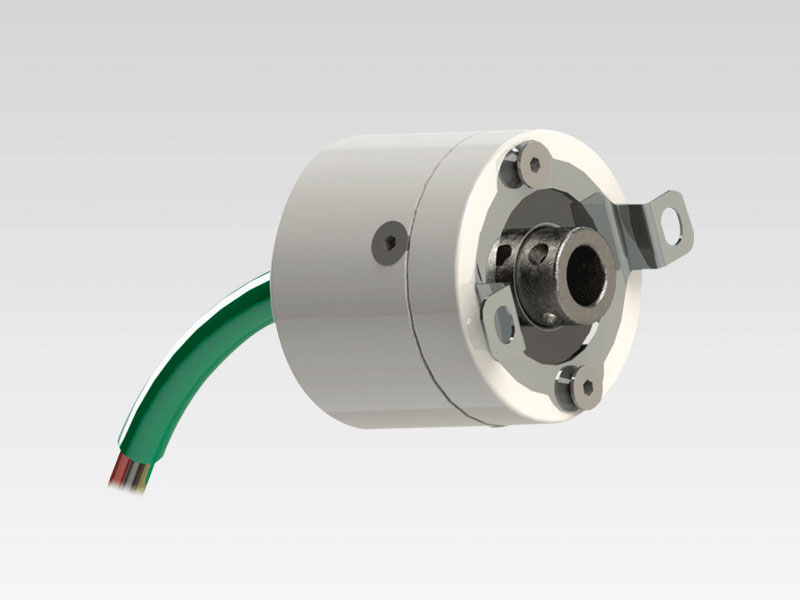

Half Hollow Shaft Incremental Encoder
Puretronics innovative half hollow shaft encoder offers unparalleled efficiency and durability in various industries.
FNC 24E Series Encoder
| General Features | ||
|---|---|---|
| Stem Diameter | 24mm | |
| Supply Voltage | 5Vdc, 5-30Vdc | |
| Connection style | 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M12 / 4pin, M12 / 5pin, M16 / 7pin, M16 / 14pin, M23 / 12pin | |
| Shaft / Bore Diameter | 5 mm | |
| Pulse | 10, 16, 25, 30, 40, 50, 60, 88, 90, 100, 141, 200, 250, 512,1024, 4096 | |
| Output Circuit / Push-Pull | A: 1, AB: 2, ABZ: 3, AB + A'B: 4, ABZ + A'B'Z ': 6 | |
| Product group | Incremental Rotary Encoders | |

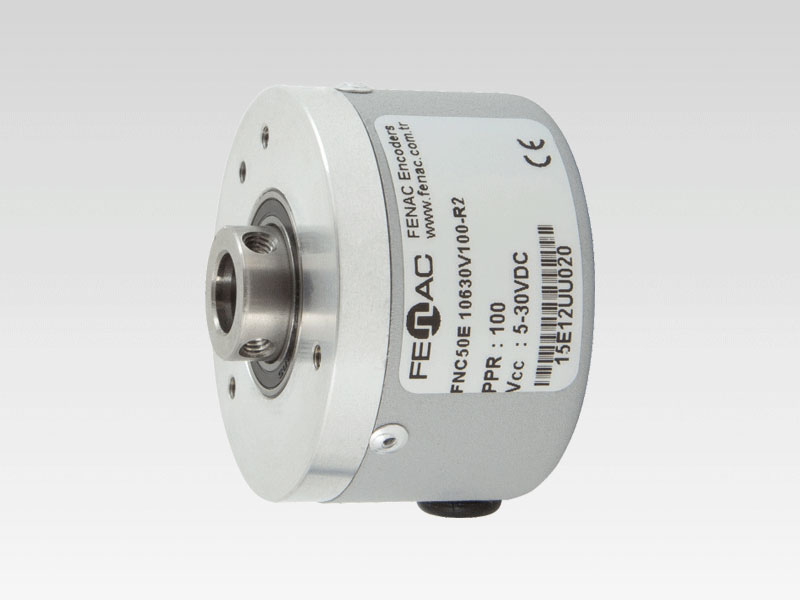

FNC 30E Series Encoder
| General Features | ||
|---|---|---|
| Stem Diameter | 30 mm | |
| Supply Voltage | 5Vdc, 5-30Vdc, 10 - 30Vdc | |
| Connection style | 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M12 / 4pin, M12 / 5pin, M16 / 7pin, M16 / 14pin | |
| Shaft / Bore Diameter | 4mm, 6mm, 8mm | |
| Pulse | 10, 16, 25, 30, 40, 50, 60, 88, 90, 100, 141, 200, 250, 300,360, 400, 500, 512, 600, 720, 800, 900, 1000, 1024, 1440, 2000, 2048, 2500 | |
| Output Circuit / Push-Pull | A: 1, AB: 2, ABZ: 3, AB + A'B: 4, ABZ + A'B'Z ': 6 | |
| Product group | Incremental Rotary Encoders | |

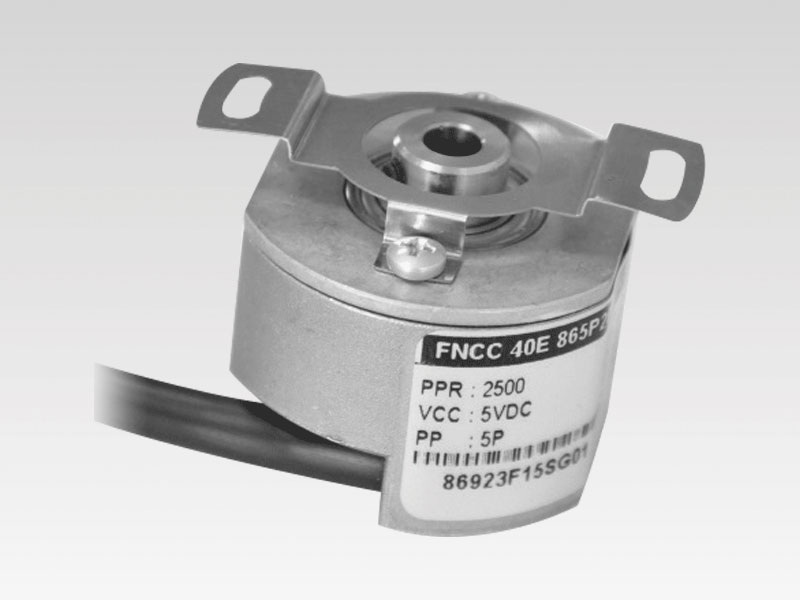

FNC 40E Series Encoder
| General Features | ||
|---|---|---|
| Stem Diameter | 40 mm | |
| Supply Voltage | 5Vdc, 5-30Vdc, 10 - 30Vdc | |
| Connection style | 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M12 / 4pin, M12 / 5pin, M16 / 7pin, M16 / 14pin | |
| Shaft / Bore Diameter | 4mm, 5mm, 6mm, 8mm | |
| Pulse | 10, 16, 25, 30, 40, 50, 60, 88, 90, 100, 141, 200, 250, 300,360, 400, 500, 512, 600, 720, 800, 900, 1000, 1024, 2048, 4096 | |
| Output Circuit / Push-Pull | A: 1, AB: 2, ABZ: 3, AB + A'B: 4, ABZ + A'B'Z ': 6 | |
| Product group | Incremental Rotary Encoders | |
FNC 50E Series Encoder
| General Features | ||
|---|---|---|
| Stem Diameter | 50 mm | |
| Supply Voltage | 5Vdc, 5-30Vdc, 10 - 30Vdc | |
| Connection style | 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M12 / 4pin, M12 / 5pin, M16 / 7pin, M16 / 14pin | |
| Shaft / Bore Diameter | 4mm, 5mm, 6mm, 8mm | |
| Pulse | 10, 16, 25, 30, 40, 50, 60, 88, 90, 100, 200, 250, 300, 360,400, 500, 512, 600, 720, 800, 900, 1000, 1024, 1250, 2000, 2048, 2500,3000, 3600, 4000, 4096, 5000, 65536 | |
| Output Circuit / Push-Pull | A: 1, AB: 2, ABZ: 3, AB + A'B: 4, ABZ + A'B'Z ': 6 | |
| Product group | Incremental Rotary Encoders | |

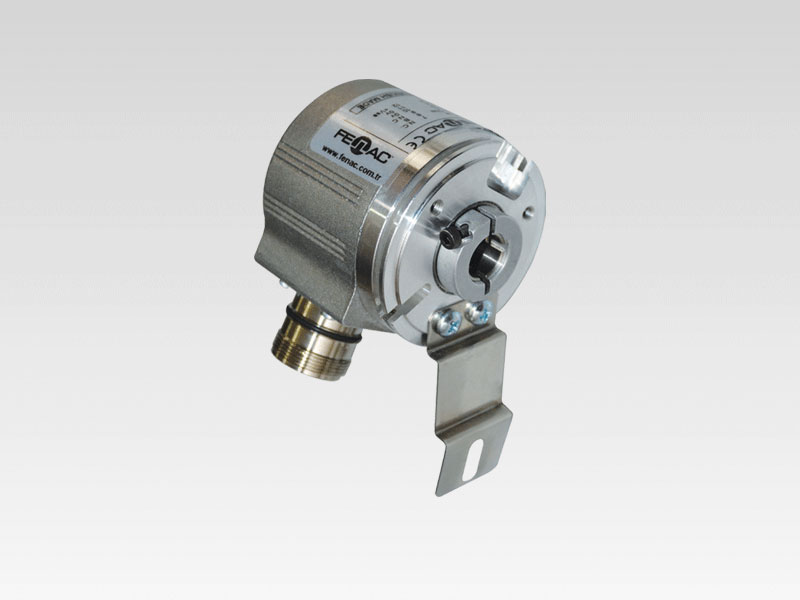

FNC 58E Series Encoder
| General Features | ||
|---|---|---|
| Stem Diameter | 58 mm | |
| Supply Voltage | 5Vdc, 5-30Vdc, 10 - 30Vdc | |
| Connection style | 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M12 / 4pin, M12 / 5pin, M16 / 7pin, M16 / 14pin, M23 / 12pin | |
| Shaft / Bore Diameter | 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 15mm, 16mm | |
| Pulse | 10, 16, 25, 30, 40, 50, 60, 88, 90, 100, 141, 200, 250, 300,360, 400, 500, 512, 600, 720, 800, 900, 1000, 1024, 1250, 1440, 2000, 2048,2500, 3000, 3600, 4000, 4096, 5000, 6000, 8000, 8192, 10000, 12500, 20000, 25000,65536 | |
| Output Circuit / Push-Pull | A: 1, AB: 2, ABZ: 3, AB + A'B: 4, ABZ + A'B'Z ': 6 | |
| Product group | Incremental Rotary Encoders | |
